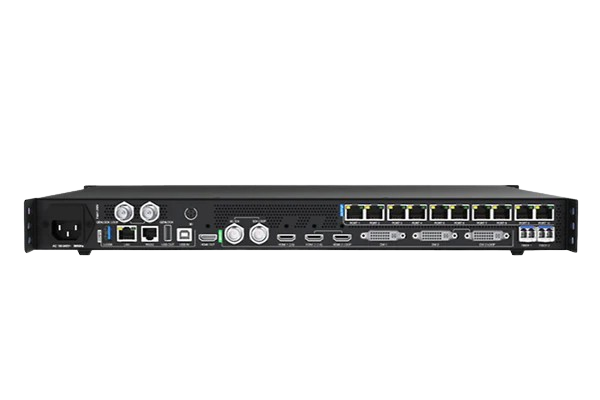

LED Video Controller
Input • Video input ports: - 1 × HDMI2.0 - 1 × HDMI1.4 (IN & LOOP) - 1 × DVI (IN & LOOP) - 1 × DVI - 1 × 3G-SDI (IN & LOOP) - 1 × 10G fiber port (Fiber1) • Supports up to 4096×2160@60Hz input. • Supports 8-bit/10-bit video signal. • HDMI2.0 port supports HDCP2.2 and is compatible with HDCP1.4 standards. • HDMI1.4 and DVI ports support HDCP1.4 standard. • Frame rate: 23.98Hz to 240Hz. Output • 10 Gigabit network ports. - Maximum loading capacity: 3.93 million pixels, up to 16,384 pixels in width and 8,192 pixels in height. • 2 × 10G Gigabit fiber ports: - Fiber1 copies 10× Ethernet ports. - Fiber2 copies/backups 10× Ethernet ports. • Fiber port supports video loop output. - Supports up to 14K1K@60Hz or 22K1K@60Hz video source. • 1 × HDMI1.3 for previewing or video output. • Frame rate: 23.98Hz to 240Hz. • Supports both Ethernet port backup and controller redundancy. Video Processing • Supports 8-bit and 10-bit video processing. • Video signal cropping, switching, and broadcasting-level scaling. • Supports 3× layers display with independent adjustment of size and position. • No latency in bypass mode. • Supports HDR display. • Supports Genlock and LOOP through. Color Adjustment • Image adjustment: Hue, saturation, contrast, and brightness compensation of output. • Brightness adjustment: By Ethernet port groups. • Color temperature adjustment: Precise color temperature and individual RGB component adjustment. Audio Input/Output • HDMI port supports audio input. • Supports audio output via multi-function card. 3 Working Modes • Video processor • Fiber optic transceiver • Bypass Device Control • USB port for control and cascading. • RS232 serial communication protocol. • LAN port for TCP/IP control.
