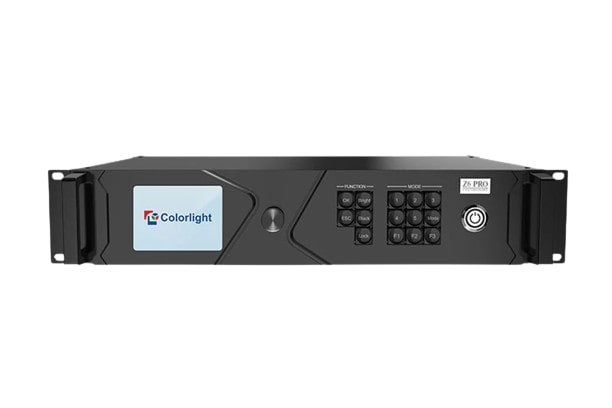

Z6 Pro
LED Video Controller

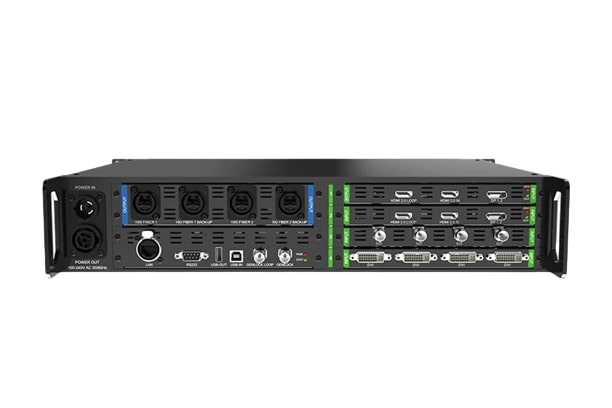

Input • Three types of 4K input cards: HDMI 2.0, DP1.2, 12G-SDI. • Four 4K input slots, supporting resolutions up to 4096×2160@60Hz per input card. • Support for 8-bit/10-bit video signals. • Support for frame rates from 23.98Hz to 240Hz. Output • Maximum capacity of 13.10 million pixels, with a maximum width of 8192 pixels and a maximum height of 8192 pixels. • 4×10G fiber outputs (two main outputs, two backup outputs). • Support for output frame rates from 23.98Hz to 240Hz. Video Processing • Up to 4-window display. • Support for cropping, broadcast-level switching, and seamless switching. • Low latency, with the option to enable low latency for selected signals, achieving at least one-frame latency. • Support for HDR10 and HLG displays with wide-gamut HDR. • Frame multiplexing for multi-camera shooting on virtual backgrounds, supporting fusion output of multiple video signals. • Frame rate multiplication with automatic and custom multiplication up to 6×. • Improved grayscale performance at low brightness levels. • Gen lock function. Color Adjustment • Color curve for individual adjustment of RGB and overall brightness at various grayscale levels. • Color Magic for multi-color adjustment based on the HSV color model to enable color transformation. • 3D-LUT for cinematic color adjustment with adjustable strength. • Picture adjustments for hue, saturation, contrast, and brightness compensation. • Brightness adjustment supported through Ethernet port groups. • Color temperature adjustment with precise and individual RGB tuning. Control • USB port for control and cascading. • RS232 protocol. • LAN port for TCP/IP control.
