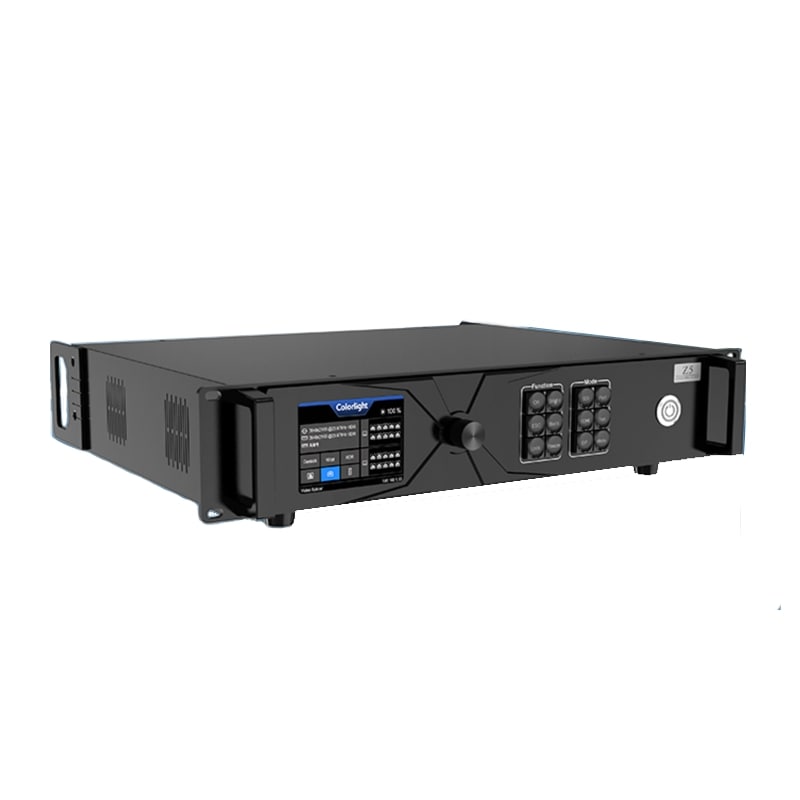

Z5
LED Video Controller
Input • Full 4K inputs: HDMI2.0, DP1.2, 12G-SDI. • Single port supports up to 4096 × 2160@60Hz. • Support 8-bit/10-bit video signal input. • Support HDCP1.4/HDCP2.2. • Support input frame rate from 23.98Hz to 240Hz. Output • Maximum capacity of 13.1 million pixels, with a maximum of 16384 pixels in width and 8192 pixels in height. • 20-channel Gigabit Ethernet port output; 2-channel 10 Gigabit fiber port output. • Support output frame rate of 23.98Hz to 240Hz. • Support both Ethernet port redundancy and controller redundancy. Video Processing • Video cropping, broadcast-level switching, and scaling. • Up to 3-window display, supporting 1-channel 4K and 2-channel HD signal display. • Low latency, minimum one-frame delay. • HDR10/HLG display. • Genlock function. Color Adjustment • Picture adjustment for hue, saturation, contrast, and brightness compensation. • Brightness adjustment, support network port grouping brightness adjustment. • Color temperature adjustment with precision and independent RGB adjustment. Control • Two USB ports for control and cascading: One for connecting to a PC for debugging or cascading input. One for cascading output. • RS232 port with a 115200 baud rate for connecting to third-party devices. • LAN port for TCP/IP control. Connect to a computer, switch for local area network access, or act as an Art-Net control port.
